Radiation Alert Dosimeter

• Personal Alarming Dosimeter and Gamma Rate Meter.
  Stay safe wherever you go with the Radiation Alert Sentry Detector.
  This compact, handheld device enables quick, reliable radiation detection in your environment.

  The Perfect addition to the Level-C PPE Push Pack to monitor current radiation levels and record total accumulated dose of gamma radiation up to 65 REM.
  It's the perfect match for other Personal Radiation Alert Devices. Know your total accumulated dose.
  Featuring a clear digital alert and robust aluminum casing, it ensures long-lasting performance and easy operation.

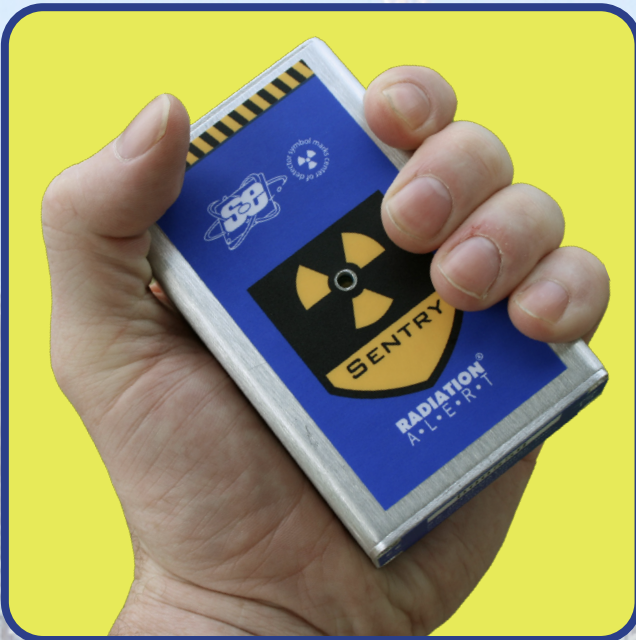

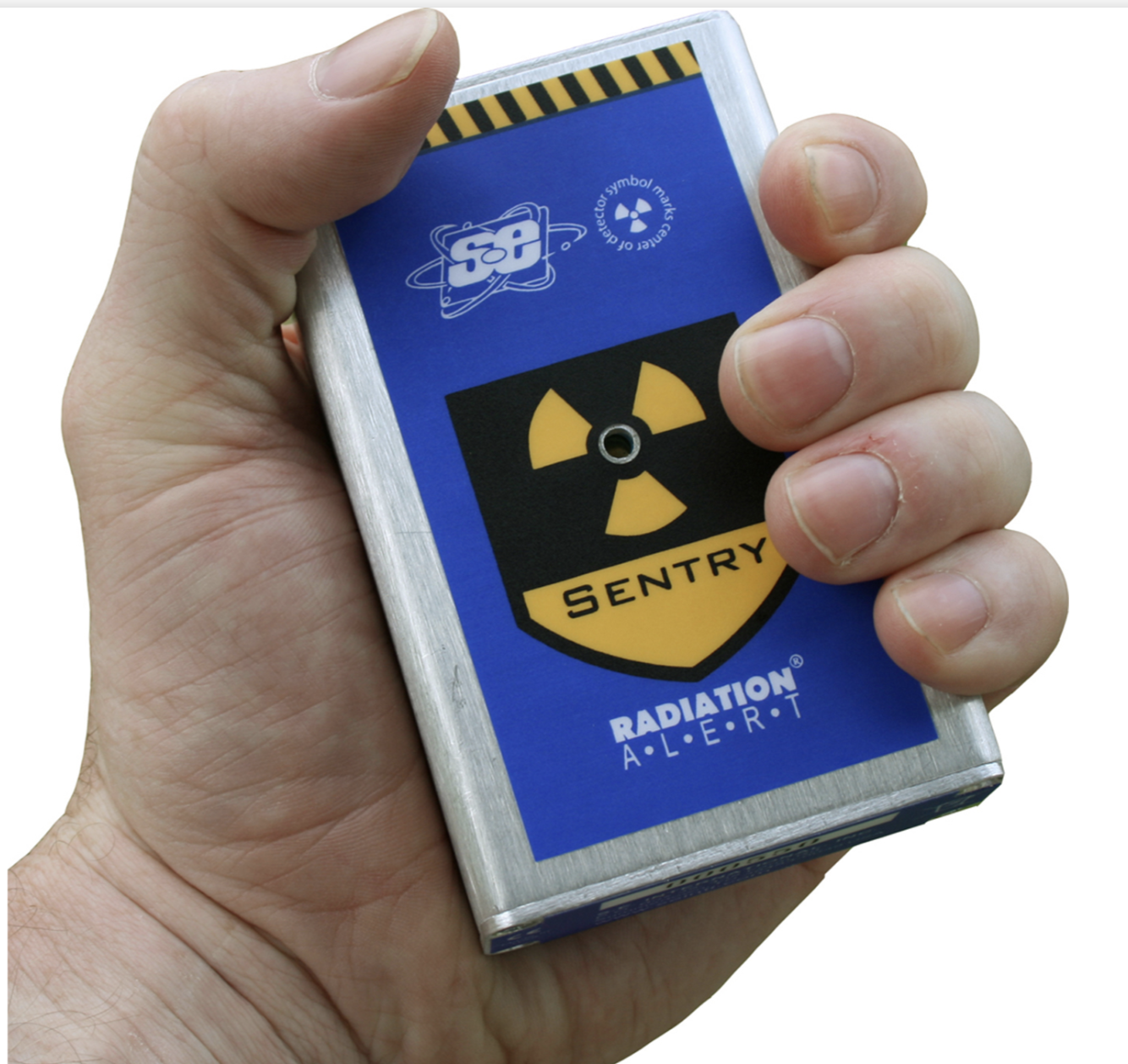

  Radiation Alert® Sentry EC – Personal Alarming Dosimeter & Gamma Rate Meter
  Professional-grade personal radiation protection for executives, emergency managers, healthcare staff, and response teams.

The Radiation Alert® Sentry EC is a compact, high-reliability personal dosimeter and rate meter designed to safeguard personnel operating in environments with potential exposure to X-ray and gamma radiation. Purpose-built for operational accountability and real-time decision support, the Sentry EC provides continuous dose rate monitoring while permanently recording accumulated exposure — a critical requirement for compliance, post-incident reporting, and responder health protection.

Why a Personal Dosimeter Matters

Unlike simple alert-only radiation pagers, the Sentry EC records total accumulated gamma dose over time. This enables:

• Individual Exposure Accountability – Track cumulative dose for each responder, executive, or facility staff member during extended operations.

• Operational Rotation Management – Support personnel rotation decisions by preventing staff from exceeding exposure thresholds.

• Incident Reconstruction & Documentation – Generate exposure reports using free SentryCom software for after-action reviews, regulatory documentation, and liability mitigation.

• Health & Safety Protection – Maintain long-term exposure awareness during prolonged shelter-in-place operations or field response activities.

For organizations deploying Level-C PPE, shelter-in-place kits, or evacuation equipment, personal dosimetry is a foundational layer of radiological safety.

Integrated Alerting for Immediate Threat Awareness

The Sentry EC features customizable audible and vibrating alarms for both dose rate and accumulated dose thresholds. Users can select discreet vibration-only alerts for sensitive environments or audible click feedback for active field operations. A high-output 90 dB alarm ensures alerts are heard even in noisy operational settings.

Enterprise-Grade Data Logging & Software Support

With built-in internal memory and the included SentryCom software, the Sentry EC allows teams to download exposure data, generate incident timelines, and perform post-event analysis. This capability is essential for hospital emergency preparedness programs, corporate continuity planning, and municipal response documentation.

Ideal Companion for Radiation Alert® Detection Devices

The Sentry EC is the perfect partner to handheld radiation survey instruments such as the Radiation Alert® Ranger, Monitor 1000EC, Monitor 200, and Frisker contamination detectors. While survey meters locate radiation sources and contamination zones, the Sentry EC continuously protects the individual operator by tracking personal exposure in real time — creating a layered radiation safety system.

Key Features and Benefits

• Personal alarming dosimeter and gamma/X-ray rate meter

• Energy-compensated GM tube for accurate linear gamma response

• Tracks both real-time dose rate and total accumulated dose

• Customizable audible and vibrating alarms

• Internal memory for exposure logging

• Free SentryCom software for reporting and analysis

• Durable anodized aluminum housing with metal belt clip

• Compact, pocket-sized, field-ready design

• NIST calibration included

Technical Specifications

Detector
Energy Compensated GM Tube
Gamma, X-ray Detection

Operating Range
Dose Rate: 0.1 – 15 R/hr (1 µSv/hr – 0.15 Sv/hr)
Accumulated Dose: 0.1 – 65 R (1 µSv – 0.65 Sv)

Dose Rate Linearity
Better than ±15% up to 15 R/hr

Energy Response
Down to 20 keV

Gamma Sensitivity
1.5 cps/mR/hr (Co-60)

Accuracy
Typically ±15% of reading (Cs-137)

Outputs
Mini-USB

Audible Alarms
Dose and Dose Rate
90 dB at 1 ft

Alarm Thresholds
Default: Dose 500 mR / Rate 50 mR/hr
Sievert Mode: Dose 5000 µSv / Rate 500 µSv/hr
User adjustable via SentryCom Software

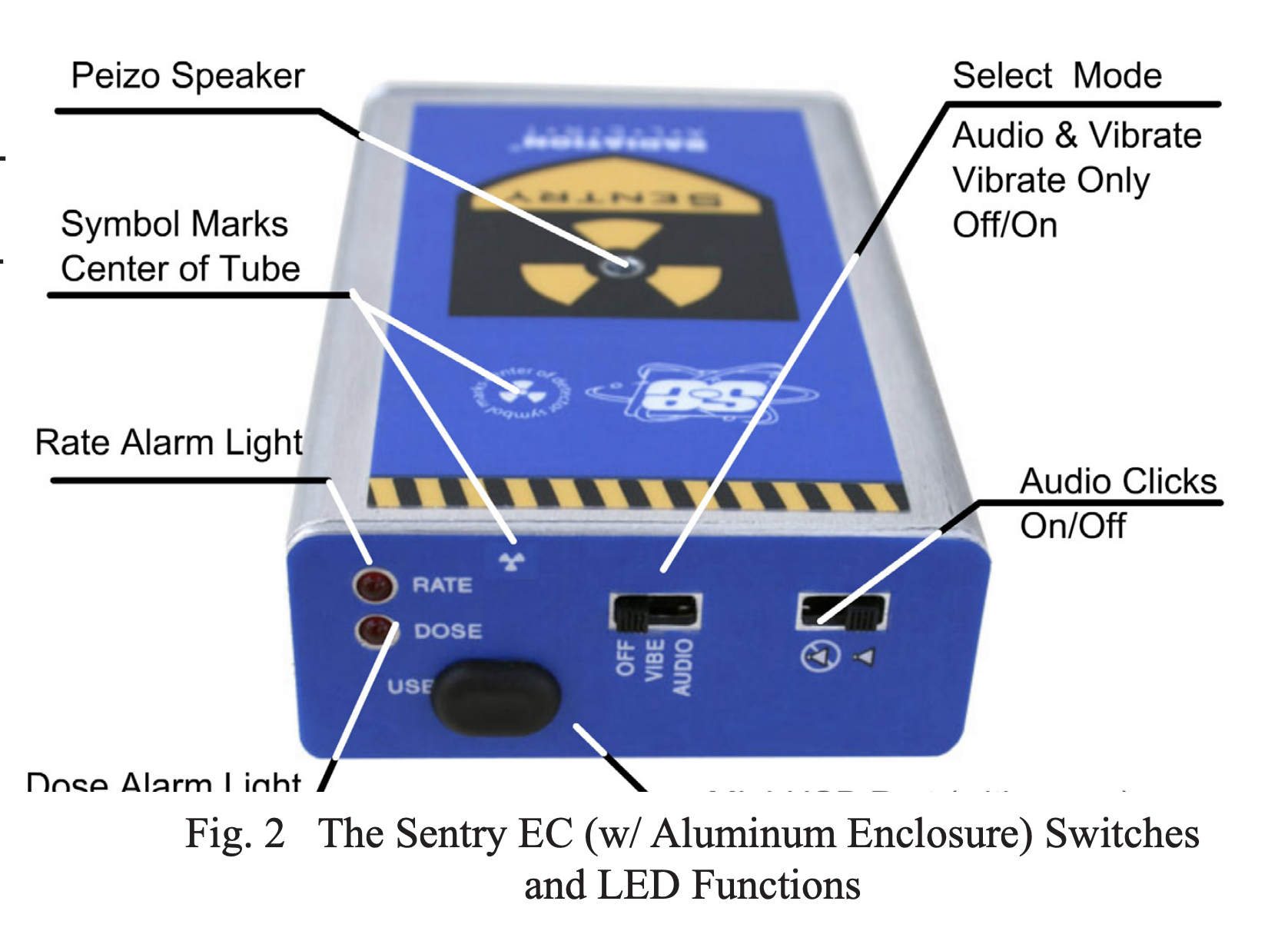

Switch Functions
Power
Vibrate & Audible Alert
Silent Vibrating Alert
Audio Clicks On/Off

Power
9V Alkaline Battery (Included)
Approx. 1500 hours at normal background

Environmental Ratings
Operating Temperature: -10°C to +50°C (14°F to 122°F)
Humidity: 10% – 70% Non-Condensing

Physical Specifications
Weight: 243 g (8.6 oz)
Size: 106 × 67 × 28 mm (4.2 × 2.7 × 1.1 in)
Housing: Anodized Aluminum with Belt Clip

Included with Purchase
NIST Calibration Certificate
9V Battery
USB Cable
Free SentryCom Software Download

Warranty
1-Year Limited Warranty

Contact LevelCPPE.com for Pricing and Availability

The Radiation Alert® Sentry EC is a mission-critical personal radiation safety instrument.
Ideal for hospital executives and first responders, corporate emergency response teams, government agencies' response teams, and preparedness-focused organizations seeking defensible, professional-grade personal radiation alerting and dosage recording devices and Level-C PPE with PAPR.
