Radiation Alert Ranger EXP Alpha, Beta, Gamma

Stay safe in emergency situations with the Radiation Alert Ranger EXP.

This handheld device provides real-time radiation measurements, featuring an easy-to-read digital display and a sensitive external probe for fast, accurate results. Perfect for Hospital First Receivers 3-Day CBRN Shelter Kit,  CERT/MRC Safety Teams. Reliable, lightweight, and built for quick deployment in critical environments.

Radiation Alert Ranger® EXP
Professional Portable Radiation Survey Meter for Field and Facility Operations

The Radiation Alert Ranger® EXP delivers laboratory-grade sensitivity in a rugged, portable platform designed for real-world emergency response, industrial safety, environmental monitoring, and regulatory compliance. Available through LevelCPPE.com, the Ranger EXP is a core radiation survey instrument for organizations that require fast, accurate detection of alpha, beta, gamma, and X-ray radiation across a wide range of operational environments.

Compact and lightweight, the Ranger EXP is engineered for high-sensitivity detection of NORM (Naturally Occurring Radioactive Material) and low-level contamination while maintaining the performance standards required for professional survey work. Built-in isotope efficiencies allow the instrument to calculate activity directly in Becquerels (Bq) and Disintegrations Per Minute (DPM), enabling rapid contamination assessment without external conversion tools.

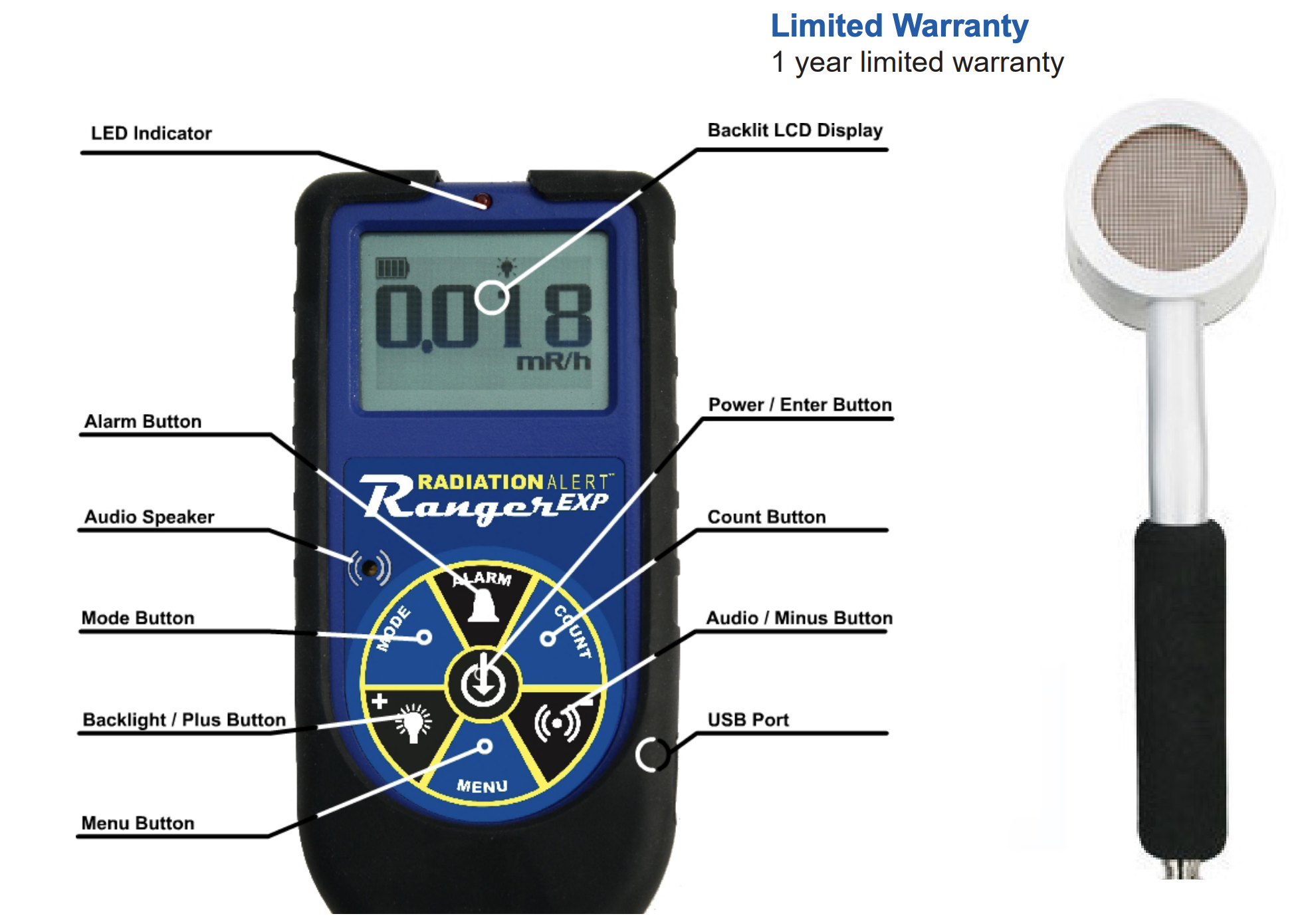

The intuitive user interface features a backlit graphic display, red count indicator light, and audible beeper that signals each radiation event for immediate situational awareness. Adjustable alarm thresholds, selectable alert modes, and programmable timers allow emergency managers and safety officers to configure the instrument to match mission-specific response thresholds and regulatory limits.

Integrated Data Management and Mobile Connectivity

The Ranger EXP includes free Observer USB Software for Windows, allowing users to download survey data, configure alarms, generate reports, and archive readings for compliance documentation and after-action review.

With the optional Bluetooth module, the Ranger EXP wirelessly connects to the Radiation Alert® Observer BLE mobile app for Android devices. This enables real-time remote viewing of radiation levels, GPS-tagged survey logging, timed counts, data sharing, and mirrored alarm notifications directly on mobile devices, improving field coordination and situational awareness during multi-team operations.

Professional Applications

Facility and perimeter radiation surveys
NORM contamination screening
Gross wipe testing and surface contamination measurement
Personnel, equipment, and package screening
Regulatory and safety inspections
Scrap metal and recycling radiation screening
Low-energy radionuclide detection
Environmental monitoring and emergency response deployment

Detector and Performance Specifications

Detector Type
RAP-RS2 External Probe
Halogen-quenched GM tube with thin mica window
Areal density: 1.4–2.0 mg/cm²
Effective window diameter: 45 mm (1.75 in)

Operating Ranges
Dose Rate: 0.001 mR/hr (1 µR/hr) to 100 mR/hr
Counts Per Minute (CPM): 0 to 350,000
Dose Rate: 0.01 µSv/hr to 1,000 µSv/hr
Counts Per Second (CPS): 0 to 5,000
Total Counts: 1 to 9,999,000

Energy Sensitivity
Alpha detection down to 2 MeV
Beta detection down to 0.16 MeV (approximately 25% efficiency at 1 MeV)
Gamma detection down to 10 keV through detector window
Sensitivity reference: 3,340 CPM per mR/hr (Cs-137)
Minimum detectable I-125 level: 0.02 µCi at contact

Built-In Isotope Efficiencies
Sulfur-35
Strontium-90/Yttrium
Cesium-137
Phosphorus-32
Carbon-14
Iodine-131
Cobalt-60
Alpha emitters

Accuracy
Factory calibrated to Cs-137
Typical accuracy ±15% from factory
±10% with optional NIST traceable calibration

Alert and Safety Features

Selectable alert thresholds for mR/hr, CPM, µSv/hr, and CPS
70 dB audible alarm at 1 meter
Pulsating alert tone for high-visibility notification
Anti-saturation protection holds reading in over-range fields up to 100x maximum scale
Visual red LED count indicator for instant radiation event feedback

Display and Output

Graphic LCD with backlight
USB output for PC data transfer and report generation
Optional Bluetooth wireless connectivity for mobile integration
Real-time data recording, saving, and sharing

Power and Environmental Ratings

Power Options
USB powered or two AA alkaline batteries (included)
Battery life approximately 800 hours at background levels

Operating Temperature
-10°C to +50°C (14°F to 122°F)

Humidity
10% to 70% non-condensing

Physical Specifications

Base Unit: 140 x 68 x 33 mm (5.5 x 2.7 x 1.3 in)
Probe: 260 x 70 x 25 mm (10.25 x 2.75 x 1 in)
Cable Length: 3 feet
Weight: 570 grams (1.25 lbs)

Included with Ranger EXP

RAP-RS2 external GM probe
3 ft BNC probe cable
Carrying case and stand
Extreme protective boot and rubber boot
Probe cap
Lanyard
AA batteries
Mini USB cable
Observer USB Software
Observer BLE mobile app
Certificate of Conformance

Optional Accessories

Bluetooth wireless module
NIST traceable calibration certificate
Radiation Response Kit

Warranty

One-year limited manufacturer warranty

Why Purchase the Ranger EXP from LevelCPPE.com

When you purchase the Radiation Alert Ranger® EXP through LevelCPPE.com, you gain more than just a radiation survey instrument. You gain integration into a complete CBRN preparedness ecosystem designed for emergency managers, hospitals, corporate safety teams, and municipal response organizations.

LevelCPPE.com provides system-level deployment guidance, operational pairing with personal dosimeters and contamination monitors, preparedness tier alignment, and integration with Level-C PPE Push Packs and radiation response kits. This ensures the Ranger EXP is not treated as a standalone device, but as part of a coordinated detection, protection, and response strategy.

Key Benefits Through LevelCPPE.com

Operational readiness integration with Level-C PPE and radiation monitoring kits
Deployment guidance for emergency response teams and facility safety programs
Preparedness tier alignment for organizational readiness planning
Support for regulatory compliance documentation and audit preparation
Compatible pairing with personal alarming dosimeters for layered radiation safety coverage
Mission-ready configuration options for hospitals, corporate campuses, and municipal agencies

Contact LevelCPPE.com for Pricing and Availability

The Radiation Alert Ranger® EXP is a professional-grade radiation survey solution designed for organizations that demand accuracy, portability, and operational reliability in high-consequence environments.
